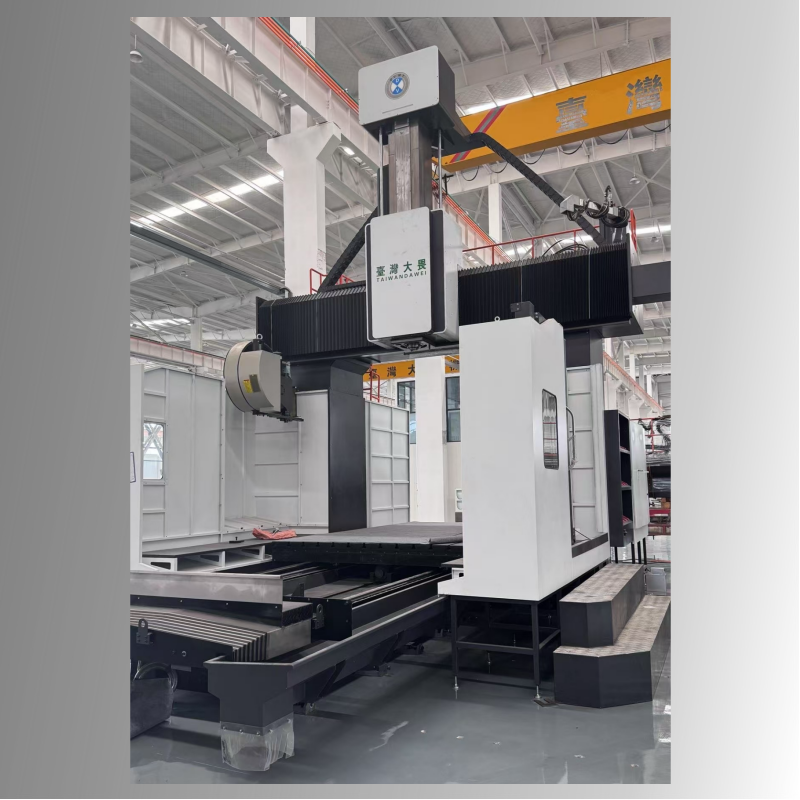

DVP-4027 table moving type CNC portal&gantry milling machines

DVP-4027 table moving type CNC portal&gantry milling machines:he X-axis is driven by the worktable to move the workpiece back and forth; the Y-axis is driven by the spindle box to move left and right along the crossbeam; the Z-axis is driven by the slide to extend and retract to complete the cutting feed. It is suitable for batch or medium-to-large workpiece machining with strict requirements for form and position tolerances, such as precision molds and aerospace parts.

Model	Unit	DVP-3027	DVP-4022	DVP-4027	DVP-5027
XY axis stroke	mm	3000*2700	4200*2200	4200*2700	5200*2700
Z axis stroke	mm	1000/1250	1000	1000/1250	1000/1250
Distance from spindle end to Worktable	mm	1300/1550	1300/1550	1300/1550	1300/1550
Worktable size	mm	3000*2000	4000*2000	4000*2000	5000*2000
Gantry width	mm	2600	2200	2600	2600
worktable load	T	18	20	25	25
Ball Screw diameter specification	–	63/63/50	80/63/50	80/63/50	80/63/50
Linear guide specilication	–
Spindle Taiwan- kenturn	mm	BT50 Ф210	BT50 Ф210	BT50 Ф210	BT50 Ф210
Three-axis motor	Nm	60/40/40	80/40/40	80/60/40	80/40/40
Spindle motor power	KW	22-26	22-26	22-26	22-26
Maximum spindle speed		6000(5000)	6000(5000)	6000(5000)	6000(5000)
linear accuracy	mm	0.01/2000	0.01/2000	0.01/2000	0.01/2000
Positioning accuracy	mm	0.01/1000	0.01/1000	0.01/1000	0.01/1000
Repeatability positioning accuracy	mm	0.005/1000	0.005/1000	0.005/1000	0.005/1000
Floor area	mm	880065005100	1130065005100	1130067005100	1300065005100
Spindle oil cooler	_	Standard (included)
chip conveyor	_	Standard (included)
High-pressure water pump	_	Standard (included)
This model can be customized according to customer requirements, the specifications and models are subjected to change without prior notice
