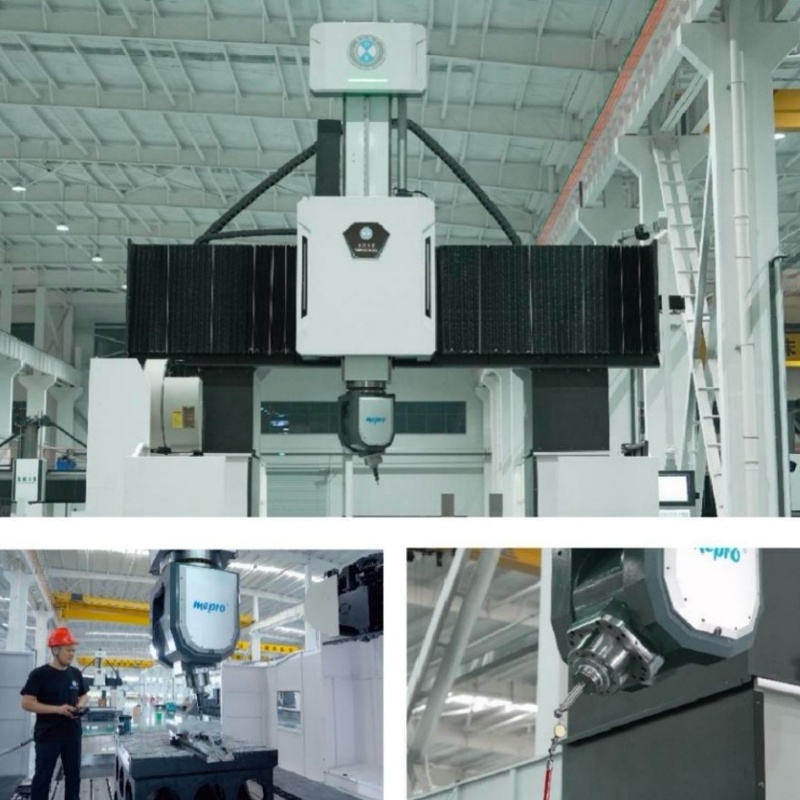

DVF-4033 Heavy duty high precision five-axis gantry milling machine

Unique and powerful mechanical structure,Well-designed mechanical structure with high rigidity and long-term stability The mechanical structure is cast by advanced mina process

Machining Range	DVF-4033	DVF-5043	DVF-6048
X/Y/Z-axis stroke	4200/3300/1250	5200/4300/1250	6100/4800/1500
A/C -axis rotation range	±110º/±360º	±110º/±360º	±110º/±360º
Efffective width of gantry	3200	4200	4600
Distance from spindle vertical end to worktable top	300-1550	300-1550	300-1800
Worktable
worktable size	4000*2000	5000*3000	6000*3000
load-bearing capacity	5	5	5
T-slot size (width* spacing )	28*180	28*210	28*210
Feed Drive
Max.cutting speed (X/Y/Z- axis )	10/10/10	10/10/10	10/10/10
Max.cutting speed (A/C- axis )	120/120	120/120	120/120
Fasting moving speed (X/Y/Z -axis )	20/20/20	20/20/20	20/20/20
Fasting moving speed (A/C -axis )	40/40	40/40	40/40
Max. acceleration (X/Y/Z -axis )	0.5/0.5/0.5	0.5/0.5/0.5	0.5/0.5/0.5
Max. acceleration (A/C -axis )	1800/1800	1800/1800	1800/1800
Spindle
Drive mode	Electric	Electric	Electric
Max.speed	18000	18000	18000
Power (S1/S6-40%)	35	35	35
Torque (S1/S6-40%)	61/88	61/88	61/88
Spindel cone	HSK-A100	HSK-A100	HSK-A100
Ram section	450*450	450*450	450*450
Tool magazine (optional )
Capacity	40	40	40
Tool handle type	HSK-A100	HSK-A100	HSK-A100
Max. tool diameter	Ф80/Ф120	Ф80/Ф120	Ф80/Ф120
Max. tool length	300	300	300
Max. tool weight	8	8	8
Accuracy (standard VD 13441 constant temperature environment )
Positioning accuracy (X/Y/Z -axis )	0.015/0.015/0.01	0.015/0.015/0.01	0.015/0.015/0.01
Positioning accuracy (A/C -axis )	5″/5″	5″/5″	5″/5″
Repeatability accuracy (X/Y/Z -axis )	0.01/0.01/0.005	0.01/0.01/0.005	0.01/0.01/0.005
Repeatability accuracy (A/C -axis )	3″/3″	3″/3″	3″/3″
others
Total power capacity	150	150	150
CNC system	SIEMENS ONE	SIEMENS ONE	SIEMENS ONE
Dimension	APPROX.8000*6314	APPROX.8000*6314	APPROX.8000*6314
Totla weight	≈46	≈46	≈46

DVF-4033 Heavy duty high precision five-axis gantry milling machine
