DVG- 5242 Beam moving type CNC gantry milling machine

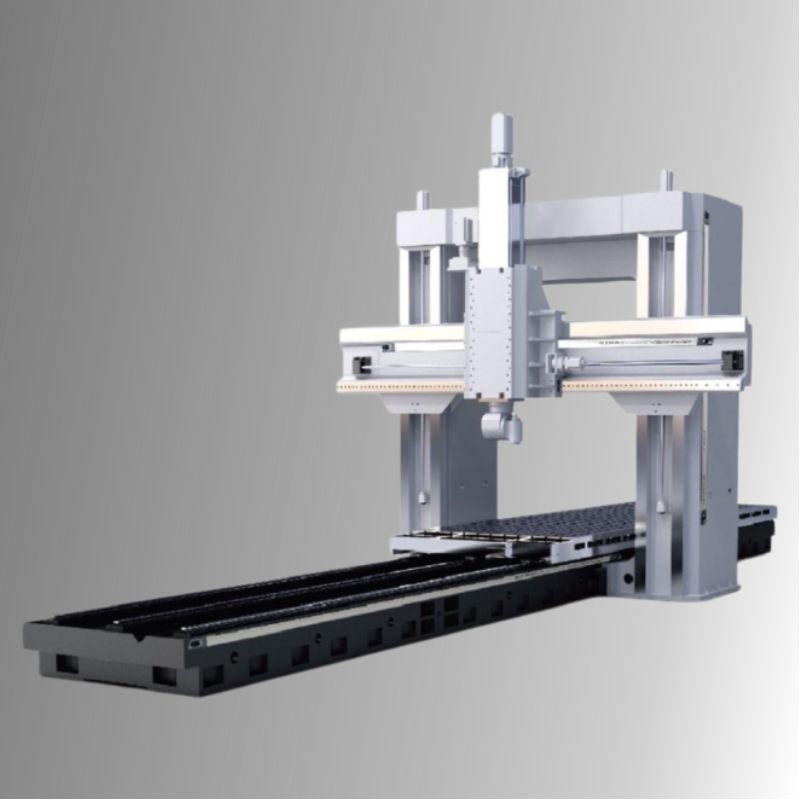

Beam moving type CNC gantry milling machine: It features a completely fixed worktable design, with the crossbeam able to rise and fall vertically along the column, and the gantry moving longitudinally along the bed. This not only expands the Z-axis machining height but also allows it to support heavy workpieces weighing tens of tons, avoiding the center of gravity shift problem caused by moving large workpieces.

Parameter	Unit	DVG-5242	DVG-6242	DVG-8242	DVG-10242	DVG-12242
X axis travel	MM	5200	6200	8200	10200	12200
Y axis travel	MM	4200	4200	4200	4200	4200
Z axis travel	MM	1000	1000	1000	1000	1000
W axis travel	MM	1500	1500	1500	1500	1500
Worktable Area	MM	5000×3200	6000×3200	8000×3200	10200×3200	12200×3200
Longmen width	MM	3800	3800	3800	3800	3800
Table bearing	Kg	25000	30000	45000	50000	60000
Spindle power	KW	22-26	22-26	22-26	22-26	22-26
Maximum spindle speed	KW	6000	6000	6000	6000	6000
Three-axis motor	PW	X7.5/Y4.5/Z4.5	X7.5/Y4.5/Z4.5	X7.5/Y4.5/Z4.5	X7.5/Y4.5/Z4.5	X7.5/Y4.5/Z4.5
Cross beam lifting motor	KW	4.5×2	4.5×2	4.5×2	4.5×2	4.5×2
Machine weight	KW	62	82	102	122	142
Straight line accuracy	T	0.1/2000	0.1/2000	0.1/2000	0.1/2000	0.1/2000
Positioning accuracy	T	0.01/2000	0.01/2000	0.01/2000	0.01/2000	0.01/2000
Floor space	MM	12900X4800	14900X4800	18900X4800	13500X4800	15500X4800
German Heidenhain grating ruler		Standard	Standard	Standard	Standard	Standard
Squareram gear head		Standard	Standard	Standard	Standard	Standard
Tool magazine		Optional	Optional	Optional	Optional	Optional
Right angle head		Optional	Optional	Optional	Optional	Optional
Direction angle head		Optional	Optional	Optional	Optional	Optional
Five axis head		Optional	Optional	Optional	Optional	Optional
