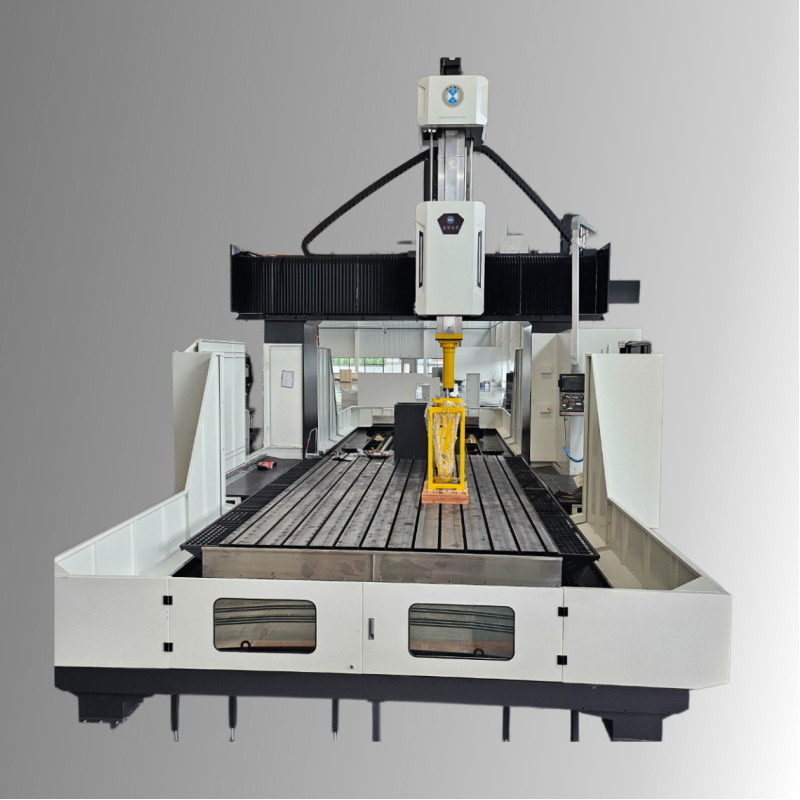

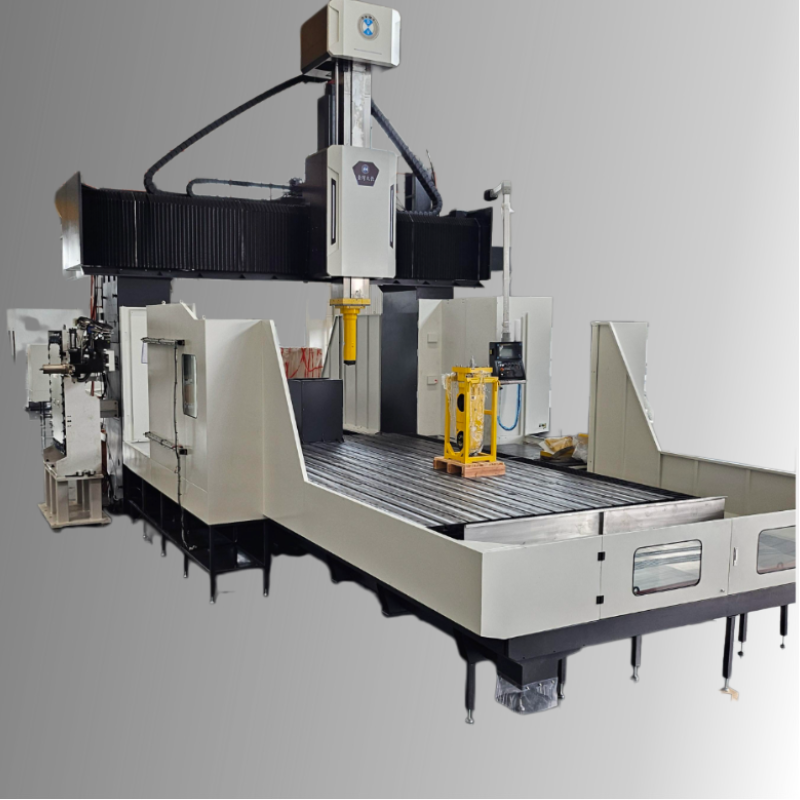

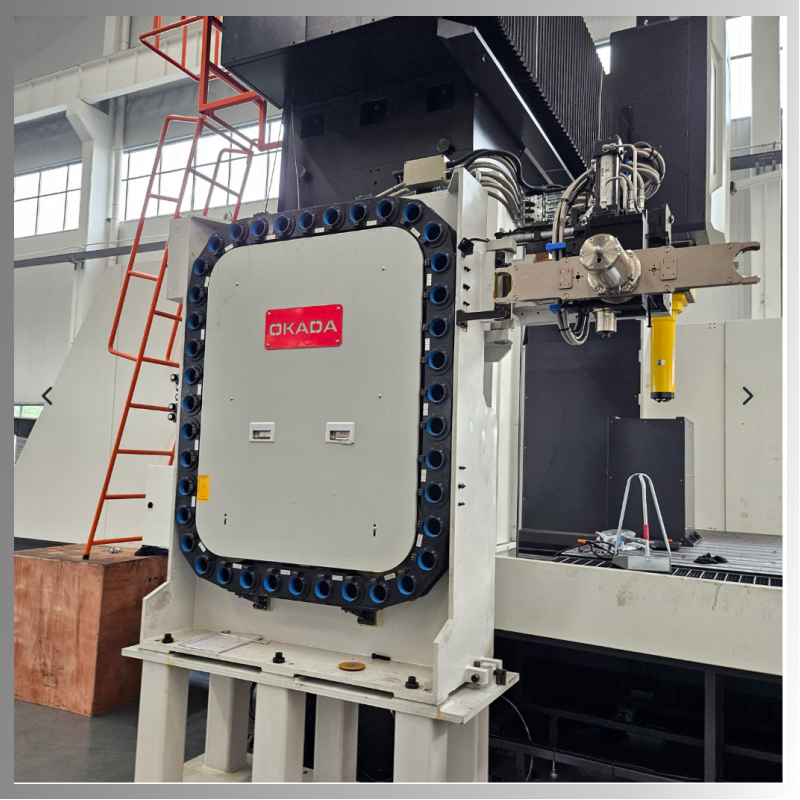

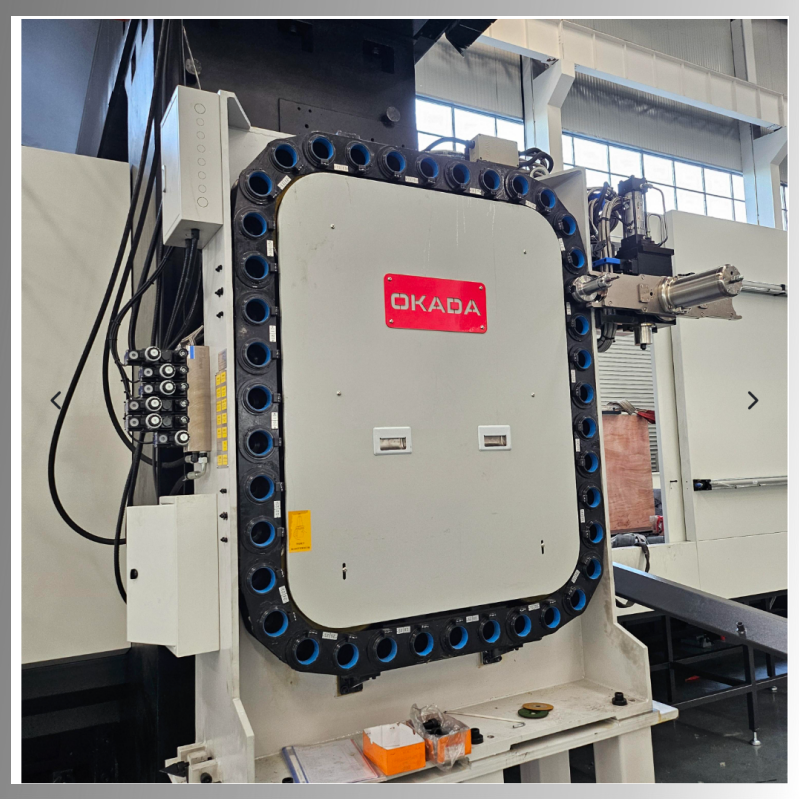

DVP-5033/5043 table moving type CNC portal&gantry milling machine

The X-axis is driven by the worktable to move the workpiece back and forth; the Y-axis is driven by the spindle box to move left and right along the crossbeam; the Z-axis is driven by the slide to extend and retract to complete the cutting feed. It is suitable for batch or medium-to-large workpiece machining with strict requirements for form and position tolerances, such as precision molds and aerospace parts.

Description

DVP-5033/5043 table moving type CNC portal&gantry milling machine:The X-axis is driven by the worktable to move the workpiece back and forth; the Y-axis is driven by the spindle box to move left and right along the crossbeam; the Z-axis is driven by the slide to extend and retract to complete the cutting feed. It is suitable for batch or medium-to-large workpiece machining with strict requirements for form and position tolerances, such as precision molds and aerospace parts.

Model	Unit	DVF-5033	DVF-5043	DVF-6033	DVF-6043
XY axis stroke	mm	5200/3300	5200/4300	6200/3300 7000(optional)	6200/4300 7000(optional)
Z axis stroke	mm	1250(1500)	1500	1250(1500)	1500
Worktable size	mm	5000*2000(3000)	6000*2000(3000)	6000*3000	6000*3000
Gantry width	mm	3200	4200	3200	4200
worktable load	T	32	45	35	50
Ball Screw diameter specification	–	80/80/63	80/80/63	80/80/63	80/80/63
Linear guide specification	–
Spindle Taiwan- kenturn	mm	450/500	500	450/500	500
Three-axis motor	Nm	85/60/40	90/80/60	95/60/40	100/80/60
Spindle motor power	KW	22/26	30/37	22/26	30/37
Maximum spindle speed		3500/3000	3500/3000	3500/3000	3500/3000
linear accuracy	mm	0.01/2000	0.01/2000	0.01/2000	0.01/2000
Positioning accuracy	mm	0.01/1000	0.01/1000	0.01/1000	0.01/1000
Repeatability positioning accuracy	mm	0.005/1000	0.005/1000	0.005/1000	0.005/1000
Floor area	mm	14100/8700/7200	16600/7700/6900	16600/8700/7200	16600/8700/7200
Spindle oil cooler	_	Standard (included)
chip conveyor	_	Standard (included)
High-pressure water pump	_	Standard (included)
