DVF-10048/52 table moving type large square ram CNC portal &gantry milling machines

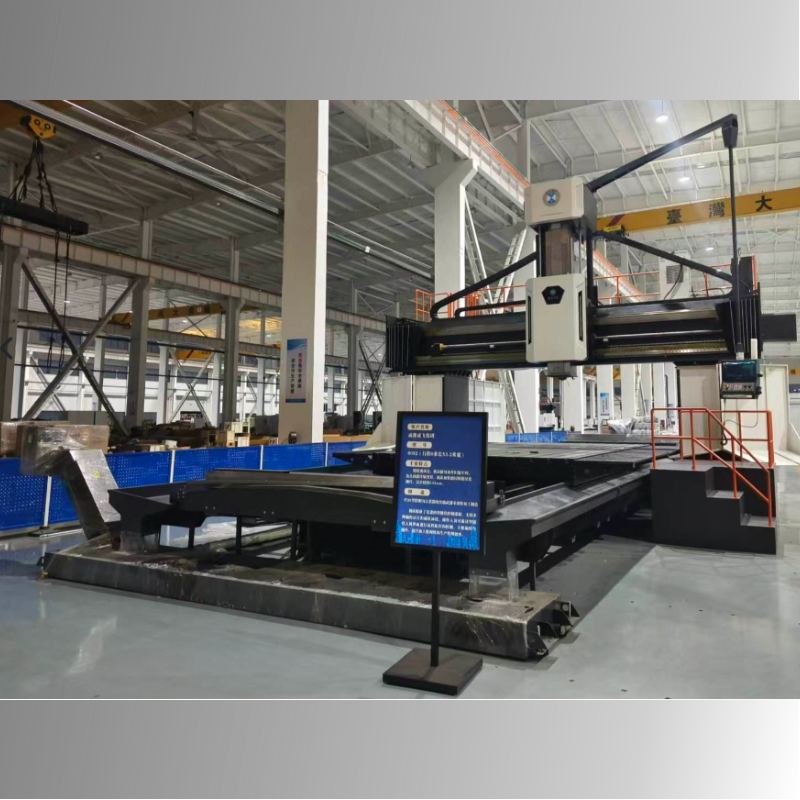

The X-axis is driven by the worktable to move the workpiece back and forth; the Y-axis is driven by the spindle box to move left and right along the crossbeam; the Z-axis is driven by the slide to extend and retract to complete the cutting feed. It is suitable for batch or medium-to-large workpiece machining with strict requirements for form and position tolerances, such as precision molds and aerospace parts.

DVF-10048 table moving type large square ram CNC portal &gantry milling machines

Model	Unit	DVF-10033	DVF-10043	DVF-10048	DVF-10052
XY axis stroke	mm	10200/3300	10200/4200	10200/4800	10200/5200
Z axis stroke	mm	1500	1500	1500	1550/1800
Worktable size	mm	8000*3000(3500)	10000/2000(3000)	10000/3000(3500)	10000/3000(3500)
Gantry width	mm	3200	4200	4600	5200
worktable load	T	45	95	95	115
Ball Screw diameter specification	–	120/80/63	120/80/63	120/80/63	120/80/63
Linear guide specification	–
Spindle Taiwan- kenturn	mm	500	500	500	500/550
Three-axis motor	Nm	140/60/60	140/80/60	140/80/60	140/100/60
Spindle motor power	KW	30/37	30/37	30/37	30/37
Maximum spindle speed		3500/3000	3500/3000	3500/3000	3000
linear accuracy	mm	0.01/2000	0.01/2000	0.01/2000	0.01/2000
Positioning accuracy	mm	0.01/1000	0.01/1000	0.01/1000	0.01/1000
Repeatability positioning accuracy	mm	0.005/1000	0.005/1000	0.005/1000	0.005/1000
Floor area	mm	25000/7700/6900	25500/8700/7200	25500/9200/7900	25500/9700/7900
Spindle oil cooler	_	Standard (included)
chip conveyor	_	Standard (included)
High-pressure water pump	_	Standard (included)
