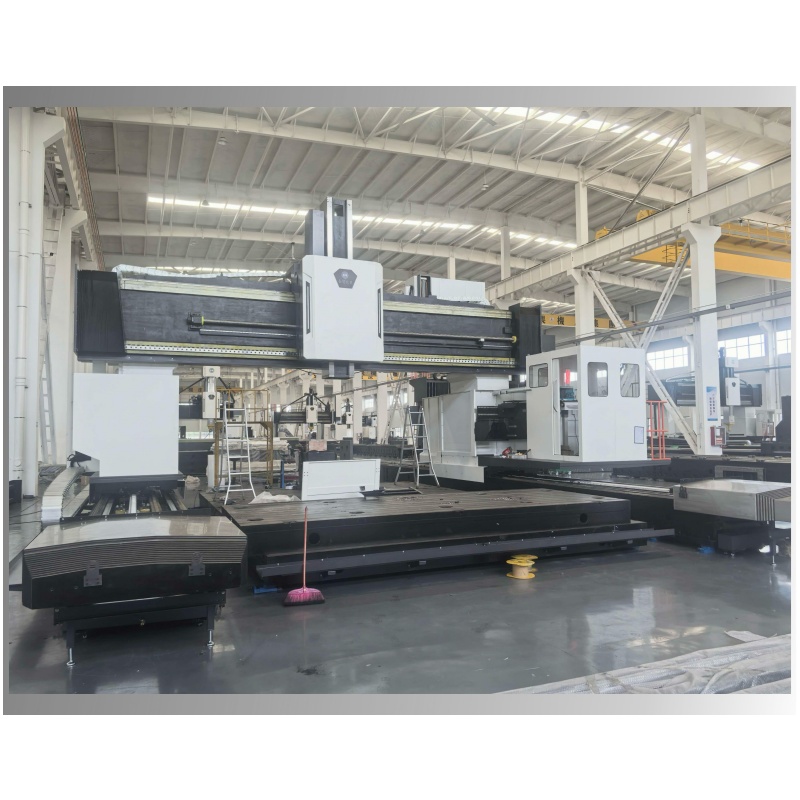

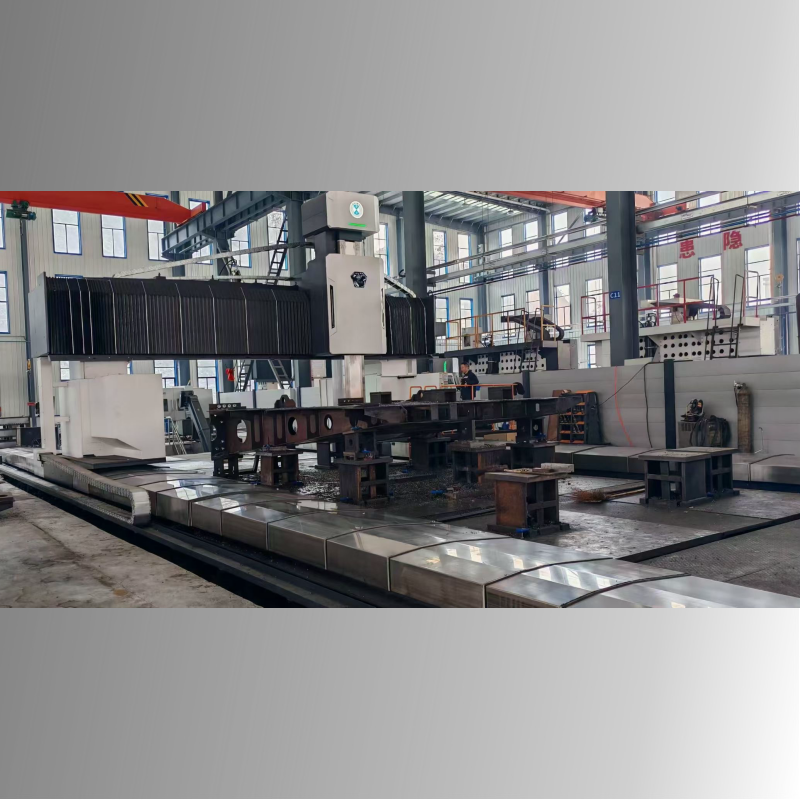

Column- type moving CNC gantry milling machine：The gantry frame, consisting of two columns and a crossbeam, moves longitudinally (X-axis) along the bed guide rails, while the worktable remains completely stationary. It is specifically designed for efficient machining of extra-long/extra-heavy workpieces in a single setup.

Description

Model	Unit	DZ-10048	DZ-10052	DZ-10062	DZ-12052	DZ-14062
X-axis Travel	mm	10200	10200	10200	12200	14200
Y-axis Travel	mm	4800	5200	6200	5200	6200
Z-axis Travel	mm	1550/1800/2200	1550/1800/2200	1550/1800/2200	1550/1800/2200	1550/1800/2200
Distance from spindle end to worktable	mm	According to customer requirement
worktable size	mm	According to customer requirement
Gantry size	mm	4600	5000	6000	5000	6000
Rack specification	mm	6	6	6	6	6
Ball screw diameter specification	mm	Ф100/80/63	Ф100/80/63	Ф100/80/63	Ф80/63	Ф80/63
Track specification X-Y	mm	55-65	55-65	55-65	55-65	55-65
Ram cross section	mm	500/550	500/550	500/550	500/550	500/550
Max.spindle rotation speed	PW	3000	3000	3000	3000	3000
Spindle torque	N.m	2400	2400	2400	2400	2400
Fast Moving speed	mm	10/10/10	10/10/10	10/10/10	10/10/10	10/10/10
Positioning accuracy X/Y/Z(full travel)	mm	0.045/0.028/0.02	0.045/0.03/0.02	0.045/0.035/0.02	0.055/0.03/0.02	0.055/0.035/0.02
Repeatability positionning accuracy X/Y/Z	mm	0.03/0.018/0.013	0.03/0.02/0.13	0.03/0.025/0.13	0.035/0.02/0.13	0.035/0.25/0.013
Floor Area	mm	16.5/9.5/7.5	16.5/10/7.5	16.5/11/7.8	19.5/10/7.5	19.5/11/7.8
Spindle oil cooler	_	Standard (included )
Chip removal machine	_	Standard (included )
High pressure water pump	_	Standard (included )
