DVP-3027 table moving type CNC portal&gantry machining center

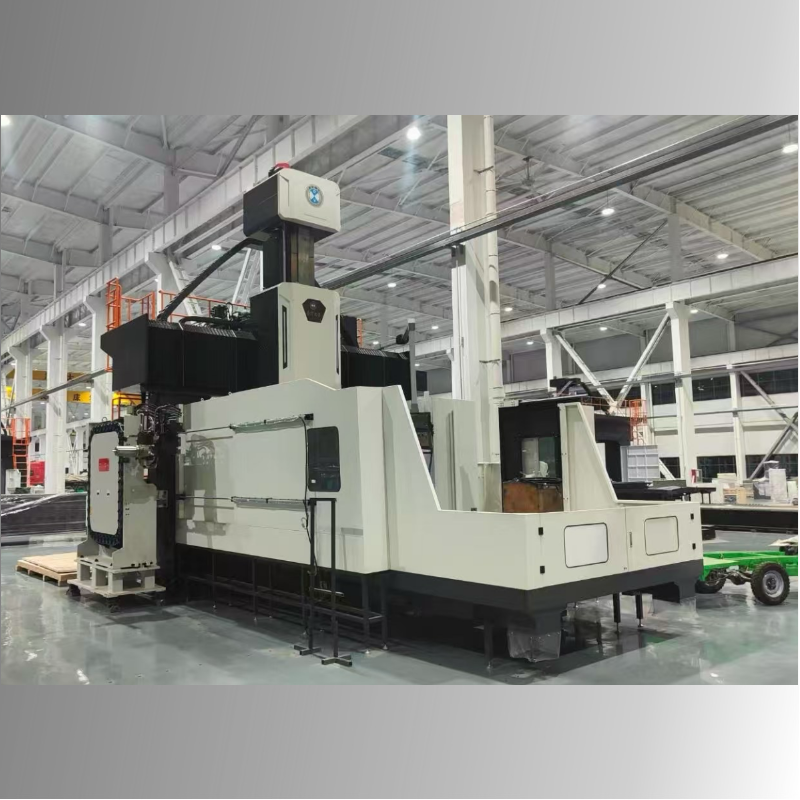

Table- type moving CNC gantry milling machine:The X-axis is driven by the worktable to move the workpiece back and forth; the Y-axis is driven by the spindle box to move left and right along the crossbeam; the Z-axis is driven by the slide to extend and retract to complete the cutting feed. It is suitable for batch or medium-to-large workpiece machining with strict requirements for form and position tolerances, such as precision molds and aerospace parts.

Main technical parameter:

Model	Unit	DVP-3027	DVP-4022	DVP-4027	DVP-5027
XY axis stroke	mm	3000*2700	4200*2200	4200*2700	5200*2700
Z axis stroke	mm	1000/1250	1000	1000/1250	1000/1250
Distance from spindle end to Worktable	mm	1300/1550	1300/1550	1300/1550	1300/1550
Worktable size	mm	3000*2000	4000*2000	4000*2000	5000*2000
Gantry width	mm	2600	2200	2600	2600
worktable load	T	18	20	25	25
Ball Screw diameter specification	–	63/63/50	80/63/50	80/63/50	80/63/50
Linear guide specilication	–
Spindle Taiwan- kenturn	mm	BT50 Ф210	BT50 Ф210	BT50 Ф210	BT50 Ф210
Three-axis motor	Nm	60/40/40	80/40/40	80/60/40	80/40/40
Spindle motor power	KW	22-26	22-26	22-26	22-26
Maximum spindle speed		6000(5000)	6000(5000)	6000(5000)	6000(5000)
linear accuracy	mm	0.01/2000	0.01/2000	0.01/2000	0.01/2000
Positioning accuracy	mm	0.01/1000	0.01/1000	0.01/1000	0.01/1000
Repeatability positioning accuracy	mm	0.005/1000	0.005/1000	0.005/1000	0.005/1000
Floor area	mm	880065005100	1130065005100	1130067005100	1300065005100
Spindle oil cooler	_	Standard (included)
chip conveyor	_	Standard (included)
High-pressure water pump	_	Standard (included)
This model can be customized according to customer requirements, the specifications and models are subjected to change without prior notice


Model	Unit	DVP-4027	DVP-5027	DVP-6022	DVP-6027
XY axis stroke	mm	4200*2700	5200*2700	6200*2700	6200*2200
Z axis stroke	mm	1000/1250	1000/1250	1000	1000/1250
Distance from spindle end to Worktable	mm	1300/1550	1300/1550	1300/1550	1300/1550
Worktable size	mm	4000*2000	5000*2000	6000*2000	6000*2000
Gantry width	mm	2600	2600	2000	2600
worktable load	T	25	25	30	28
Ball Screw diameter specification	–	80/63/50	80/63/50	80/63/50	80/63/50
Linear guide specilication	–
Spindle Taiwan- kenturn	mm	BT50 Ф210	BT50 Ф210	BT50 Ф210	BT50 Ф210
Three-axis motor	Nm	80/60/40	80/40/40	85/40/40	90/40/40
Spindle motor power	KW	22-26	22-26	22-26	22-26
Maximum spindle speed		6000(5000)	6000(5000)	6000(5000)	6000(5000)
linear accuracy	mm	0.01/2000	0.01/2000	0.01/2000	0.01/2000
Positioning accuracy	mm	0.01/1000	0.01/1000	0.01/1000	0.01/1000
Repeatability positioning accuracy	mm	0.005/1000	0.005/1000	0.005/1000	0.005/1000
Floor area	mm	1130067005100	1300065005100	1300067005100	1600065005100
Spindle oil cooler	_	Standard (included)
chip conveyor	_	Standard (included)
High-pressure water pump	_	Standard (included)

Model	Unit	DVF-5033	DVF-5043	DVF-6033	DVF-6043
XY axis stroke	mm	5200/3300	5200/4300	6200/3300 7000(optional)	6200/4300 7000(optional)
Z axis stroke	mm	1250(1500)	1500	1250(1500)	1500
Worktable size	mm	5000*2000(3000)	6000*2000(3000)	6000*3000	6000*3000
Gantry width	mm	3200	4200	3200	4200
worktable load	T	32	45	35	50
Ball Screw diameter specification	–	80/80/63	80/80/63	80/80/63	80/80/63
Linear guide specification	–
Spindle Taiwan- kenturn	mm	450/500	500	450/500	500
Three-axis motor	Nm	85/60/40	90/80/60	95/60/40	100/80/60
Spindle motor power	KW	22/26	30/37	22/26	30/37
Maximum spindle speed		3500/3000	3500/3000	3500/3000	3500/3000
linear accuracy	mm	0.01/2000	0.01/2000	0.01/2000	0.01/2000
Positioning accuracy	mm	0.01/1000	0.01/1000	0.01/1000	0.01/1000
Repeatability positioning accuracy	mm	0.005/1000	0.005/1000	0.005/1000	0.005/1000
Floor area	mm	14100/8700/7200	16600/7700/6900	16600/8700/7200	16600/8700/7200
Spindle oil cooler	_	Standard (included)
chip conveyor	_	Standard (included)
High-pressure water pump	_	Standard (included)

Model	Unit	DVF-6052	DVF-8033	DVF-8043	DVF-8048
XY axis stroke	mm	6200/5200 7000(optional)	8200/4300 9000(optional)	8200/4800 9000(optional)	8200/5200 9000(optional)
Z axis stroke	mm	1500	1500	1500	1500
Worktable size	mm	6000*3000(3500)	8000/2000(3000)	8000/3000(3500)	8000/3000(3500)
Gantry width	mm	5200	3200	4200	4600
worktable load	T	65	65	75	75
Ball Screw diameter specification	–	80/80/63	100/80/63	100/80/63	100/80/63
Linear guide specification	–
Spindle Taiwan- kenturn	mm	500/550	500	500	500
Three-axis motor	Nm	120/60/60	120/80/60	120/80/60	120/100/60
Spindle motor power	KW	30/37	30/37	30/37	30/37
Maximum spindle speed		3500/3000	3500/3000	3500/3000	3000
linear accuracy	mm	0.01/2000	0.01/2000	0.01/2000	0.01/2000
Positioning accuracy	mm	0.01/1000	0.01/1000	0.01/1000	0.01/1000
Repeatability positioning accuracy	mm	0.005/1000	0.005/1000	0.005/1000	0.005/1000
Floor area	mm	16600/9700/7900	21000/7700/6900	21000/8700/7200	21000/9200/7900
Spindle oil cooler	_	Standard (included)
chip conveyor	_	Standard (included)
High-pressure water pump	_	Standard (included)
